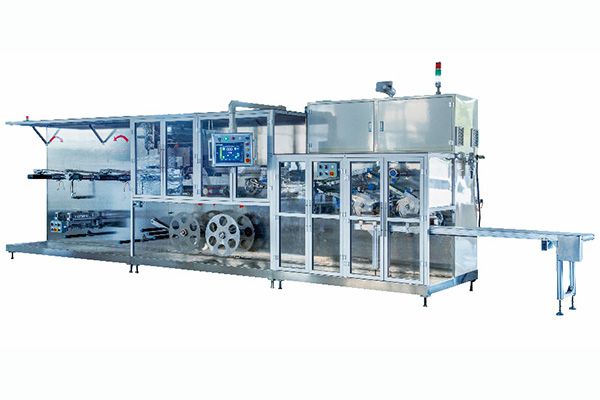

GM-084D Sheet Mask Folding and Stacking Machine
The GM-084D series machine cuts, folds, counts and stacks sheet masks. The machine uses a bus type servo drive system with a high-quality touchscreen, and is easy to operate. It features an excellent performance stability, and works 24 hours a day with a high production efficiency.
Rated Speed: 220 sheets/min
Stable Speed: 160~180 sheets/min

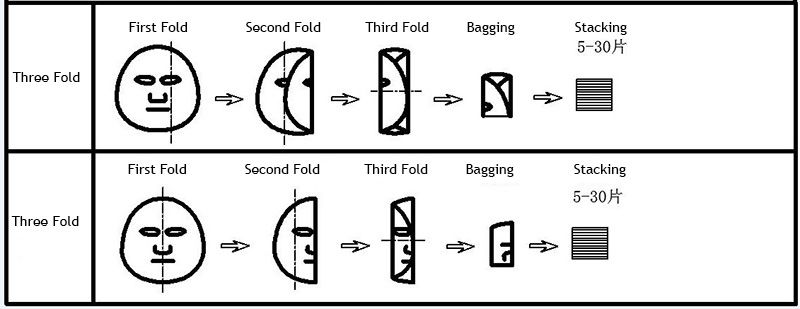

Film rolling, tension controlling, cutting, waste collecting, folding, staggered placing, counting, stacking, sending out the finished sheet masks
- ① Film Rolling
- ② Tension Control
- ③ Facial Cutting
- ④ Waste Collection
- ⑤ Folding
- ⑥ Conveying
- ⑦ Counting 1
- ⑧ Counting 2
- ⑨ Stacking 1
- ⑩ Stacking 2
| Production efficiency | ≥98% |
| Operating efficiency | ≥95% |
| Power supply | 380V, 50/60Hz |
| Installed capacity | about 16KW |
| Power consumption at rated speed | about 12KWH |
| Air supply | pressure: ≥0.5Mpa, consumption: ＜200LPM |
| Noise | Weighted mean ≤85 dB(A) |
- The facial mask cutter has a sophisticated design and will perform using a high precision processing technology. A patented cutting knife technology triples the service life over traditional knives, and it cuts up to 4,000,000 sheets in one sharpening cycle, with a service life of 10 to 15 sharpening cycles.
- The machine uses a bus type servo drive system to neatly fold sheet masks, with a folding deviation of ≤ ±2mm.
- The multi-process automatic detection and elimination system prevents empty bags and defective products.
- The machine features no secondary pollution caused by exposure to food hygiene material in any parts that come into contact with the facial mask. This equipment is also easy to clean.
Gachn is a reliable facial sheet mask production line manufacturer and supplier, leader in designing and manufacturing automated bag packaging equipment. There are wide range of plastic bag packaging machines for packing disposable sanitary and non-woven facial mask products. Gachn is a joint stock company contributed to providing quality disposable facial sheet mask machines and custom packaging solutions for customers.
