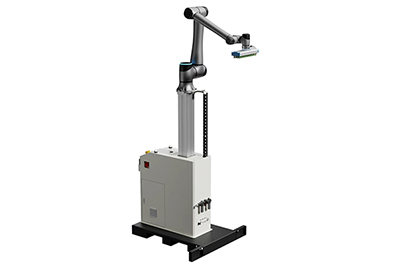

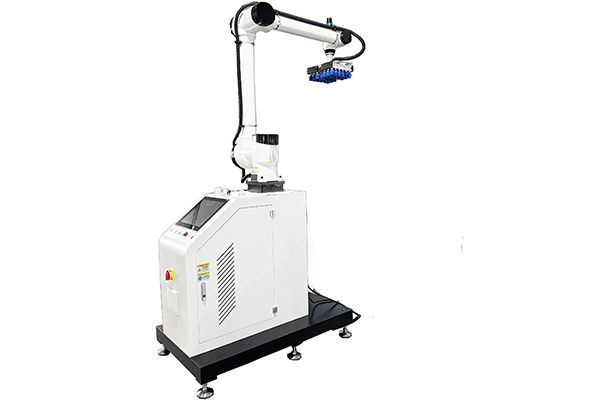

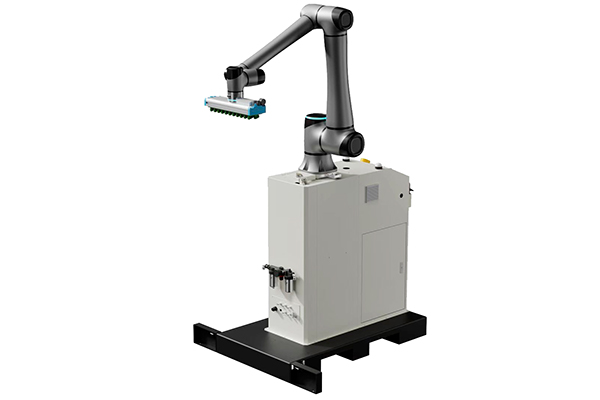

Collaborative Robot Palletizer

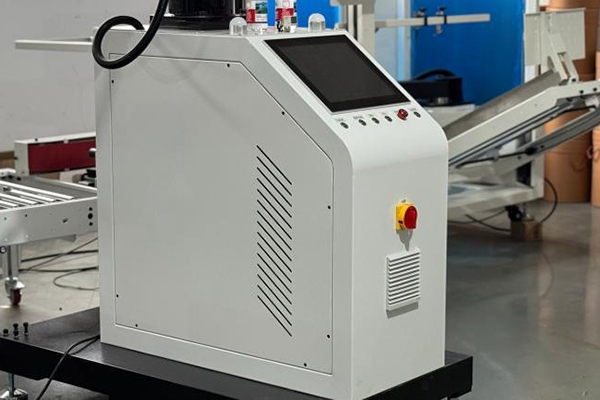

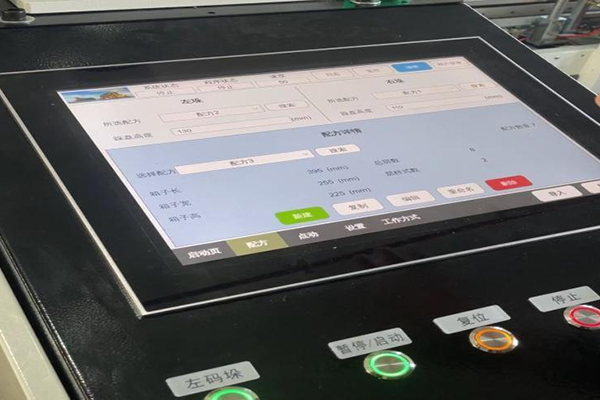

The collaborative robot palletizer is designed to work seamlessly alongside workers to enhance the end-line production efficiency and adapt to various tasks. This palletizer is equipped with safety sensors to create a safer and more efficient workplace environment. With its compact design and user-friendly touchscreen control, the palletizer delivers intelligent operation management with easy operation and requires minimal training. This machine can greatly reduce manpower and lower the labor intensity of the production line. It can also function as a standalone unit or be integrated with an automatic stack feeder and pallet conveyor to create a fully automated palletizing system.
| Power Supply | 220V 1 phase |
| Power | 6700W |
| Palletizing Speed | 8-10 boxes/min |
| Palletizing Height | 1700mm-2500mm (including pallet height) |
| Pallet Size | 1200mm*1200mm*140mm |
| Working Radius | 1700mm |
| Machine Weight | ±500kg |
| Temperature Range | 0-55°C |

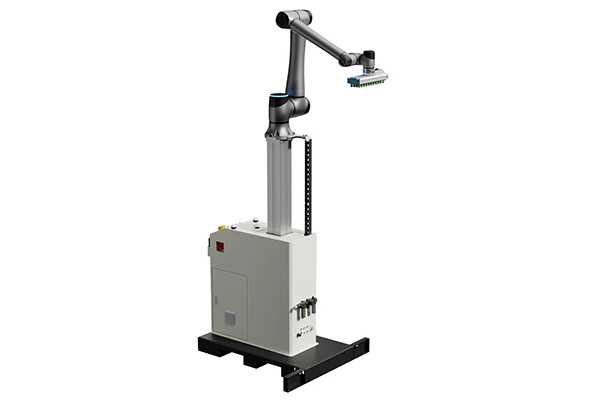

| Vertical Dimension | Vertical type H: 1700mm / Lifting type H: 2400mm |
| Footprint | 6m² |
| IP Rating | IP54 |
- The collaborative robot palletizer is integrated with Gachn’s self-developed core operating system. It can quickly switch between multiple functional scenarios. The parameter can also be flexibly adjusted at any time according to varying production and site needs to handle different carton sizes and changing stacking patterns.
- The lightweight and compact design of the palletizer requires minimal floor space, only occupying 6 m², including a double-stack layout. However, it provides a large load capacity of up to 50kg to ensure smooth and efficient production.

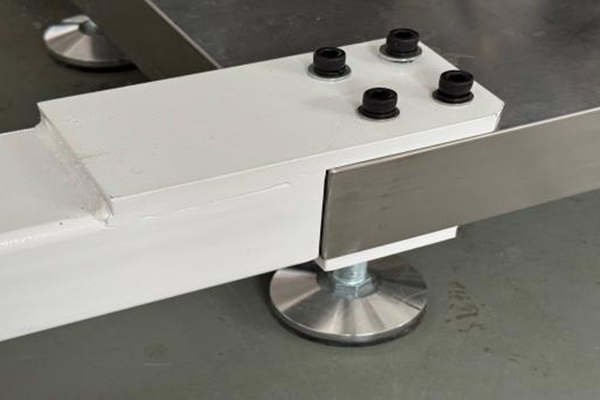

- This robot palletizer features a compact design, an easy-to-install setup, and can flexibly adapt to diverse production environments and tasks, allowing it to be used independently or integrated with other equipment.
